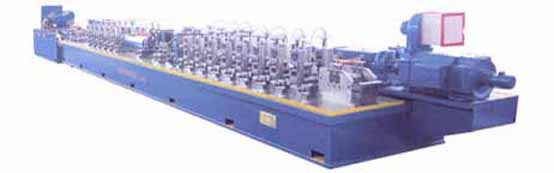

SD32
Precision High Frequency
Tube Welding Unit |
|
| General
Components |
- Feeding rack
- storing chamber
- main machine (forming, welding, cooling, diameter setting, correcting、integration, main driving is DC motor, refined materials used
,made in high precision)
- computer controlled saw
- tolerance of tube diameter±0.04mm
- tolerance of length±5mm
- tube speed 20-90M/min
|
|
|
Main Technical
Parameters |
|
Item |
SD76 Unit |
SD89 Unit |
| Diameter of Welded Tubes |
φ25～80mm |
φ30～95mm |
| Wall Thickness of Welded Tube |
1.5～4.0mm |
1.5～4.0mm |
| Speed of Tube Welding |
15～60M/min |
15～60M/min |
| Power of Major motor |
110kw |
132kw |
| High Frequency Power |
200kw |
300kw |
|
|
Complete technical
data and specific characteristics are listed in our quotation. Please contact our technical
sales engineers for further details. |
|
|
