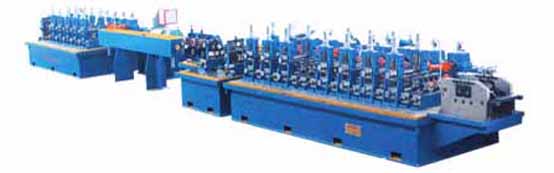

SD28 (45, 60)
High Frequency Tube Welding Unit |
|
| General
Components |
- Feeding Rack
- Storing Chamber
- Main Machine
- Pneumatic tracking (Computer Available Subject to Your Need
- tolerance of tube diameter±5mm
- tube speed20～80m/min)
- Feeding rack
|
|
|
Main Technical
Parameters |
|
Item |
SD28 Unit |
SD45 Unit |
SD60 Unit |
| Diameter of Welded Tubes |
φ10～38mm |
φ13～50mm |
φ15～63mm |
| Wall Thickness of Welded Tube |
0.6～1.5mm |
0.8～2.0mm |
1.0～3.0m |
| Speed of Tube Welding |
20～60M/min |
20～60M/min |
20～60M/min |
| Power of Major motor |
45kw |
55kw |
75kw |
| High Frequency Power |
100kw |
100kw |
200kw |
|
|
Complete technical
data and specific characteristics are listed in our quotation. Please contact our technical
sales engineers for further details. |
|
|
